280KG 3.5kw Two Hot Two Cold Automatic Counter Molding Shoe Back Part Making Machine for Customer Requirements

Name: 280KG 35kw Two Hot Two Cold Automatic Counter Molding Shoe Back Part Making Machine for Customer Requirements
Brand: YUTAI
Price: 23 USD

Buy cheap 280KG 3.5kw Two Hot Two Cold Automatic Counter Molding Shoe Back Part Making Machine for Customer Requirements product

Condition : New

Applicable Industries : Manufacturing Plant

Weight (KG) : 280

Showroom Location : None

Video outgoing-inspection : Not Available

Machinery Test Report : Not Available

Marketing Type : Hot Product 2019

Warranty of core components : 1 Year

Core Components : other

Place of Origin : Guangdong, China

Brand Name : YUTAI

Warranty : 1 Year, One year

Key words : Back Part Moulding Machine

Dimension : 1080*930*1460mm

Weight : 280kg /380kg

Voltage : 220v/50hz

Power : 3.5kw

Air pressure : 5-6kg/cm2

Capacity : 1400-2000 pairs/8hrs

After sale service : On line/video/engineer ovearsea

Price : CN¥23,138.24/sets 1-4 sets

Contact Now

280KG 3.5kw Two Hot Two Cold Automatic Counter Molding Shoe Back Part Making Machine for Customer Requirements

Product Description

YT-632D Two Cold & Two Hot Back Part Moulding Machine

Function:

This machine is suitable for moulding back part of all kind of shoes.

Feature:
1.The temperature can be adjusted according different material of shoes.
2. After the back counter pre-moulding process, the upper and lining will be attached tightly and smoothly to retain superior quality.
3. Slant operating platform enables easier and more convenient, operation for the operator.
4. The switch of adjustable clamp can be turned off in need so as to be applicable to various kinds of shoes.
5. Custom-made last mould offers the highest accuracy.
6. The special inverse mould can be used to reshape the rejects to remove wrinkles and keep perfect appearance of top line.
7. Uniquely designed environmentally- sound cooling system boasts the best cooling effect with high efficiency.(vaporizer
temperature drops to -20 degree after 10 minutes normal running)

Technical Parameter

Machine Model	YT-632D
Voltage	220V/50HZ
Power	3.5kw
Air pressure	5-6kg/cm2
Capacity	1400-2000 pairs/8hrs
Machine Dimension	10809301460mm
Machine Weight	280kg
Package Dimension	118010301580mm
Package Weight	380kg

Special front mold

Can readjust the unqualified products to remove wrinkles and beautify the shoe mouth. The unique environmental protection freezing system is designed with high efficiency and the fastest freezing. Normal operation for 10 minutes, the evaporator can reach below -20 degrees

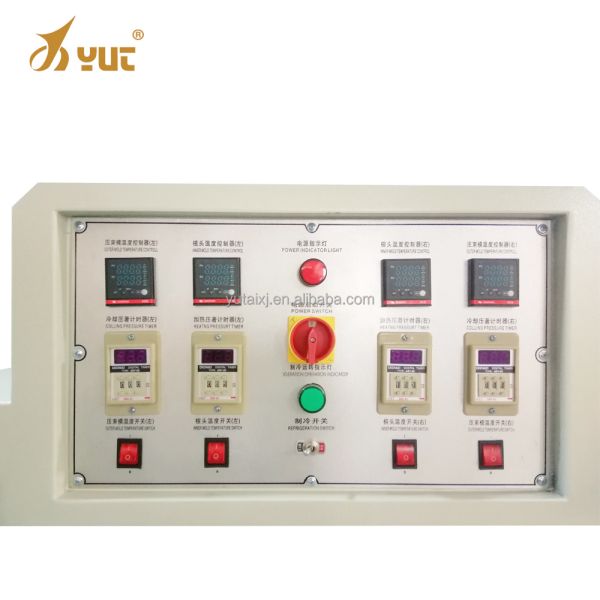

Control Panel

Have bilingual signs in Chinese and English, which is easy to understand and easy to operate. The indicator lights and switch buttons are centralized for easier observation and operation
